Best Three-Phase Relay Switches for Industrial Applications
Three-phase relay switches are essential for motor control, HVAC systems, and industrial automation. This article reviews five reliable options, highlighting input/output configurations, mounting, and key specs to help you compare performance. Each product is evaluated for switching speed, durability, and compatibility with three-phase loads in typical American facilities.
Summary of chosen products
| Product | Brand | Input | Output | Notes |
|---|---|---|---|---|
| LCLCTC SSR-40AA | LCLCTC | AC to AC | AC to AC, 40A | 3-phase capable solid state relay |
| JGX-3340A | Baomain | 4-32 VDC | 480VAC, 40A | DC input control |
| SSR 40DA | LCLCTC | DC to AC | 24-480VAC, 40A | DC input, needs radiator if high current |
| SSRs 25DA | CGELE | DC to AC | 24-480VAC, 25A | Plastic cover included |
| PMPU Monitor Relay | Macromatic | 190-500 VAC | SPDT, 8-pin | 3-phase monitoring |
LCLCTC 3 Phase Solid State Relay SSR-40AA
The LCLCTC SSR-40AA is an AC to AC solid-state relay designed for three-phase switching scenarios. It emphasizes high switching speed, anti-corrosion, moisture resistance, and long life with electromagnetic compatibility features. Typical use involves motor control and direct switching of AC loads in three-phase systems. The product note recommends pairing with an appropriate radiator when used with higher current loads to manage heat effectively.
Baomain JGX-3340A 4-32 VDC Input 480VAC 40A Relay
This Baomain solid-state relay accepts a DC control signal (4-32 VDC) and switches a 480 VAC, up to 40 A load. It is appropriate for three-phase automation tasks where a DC control circuit regulates AC loads. Mounting hole dimensions are specified for stable installation. This model suits control applications requiring reliable DC-to-AC SSR performance in three-phase environments.
LCLCTC SSR 40DA DC to AC
The SSR-40DA provides a DC input to AC output path with a 40A rating and 24-480 VAC switching range. It measures 4.13 inches by 2.91 inches by 1.3 inches, making it fairly compact for motor control panels. A radiator is recommended when current exceeds 10A to maintain reliability and performance in demanding three-phase loads.
Macromatic PMPU 3 Phase Monitor Relay
The Macromatic PMPU monitor relay is designed for three-phase monitoring with a 10 A SPDT contact rating and a 190-500 VAC operating range. This device helps detect phase loss or reversal in three-phase systems, providing a protective control function in industrial HVAC or motor applications. It is a plug-in SPDT relay suitable for integration into control panels where phase monitoring is critical.
CGELE 3 Phase SSR-25DA
The CGELE SSR-25DA is a three-phase solid-state module designed for DC to AC control inputs (3-32 VDC) and 24-480 VAC outputs at up to 25A. This compact unit includes a plastic cover for additional safety and environmental protection. The product details emphasize the dual voltage capability and sturdy construction suitable for small to mid-size three-phase control tasks.

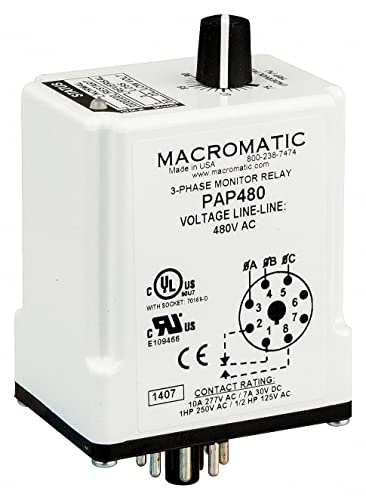

Macromatic 3 Phase Monitor Relay SPDT
This Macromatic three-phase monitor relay covers 240 VAC with 8-pin SPDT configuration and provides a compact option for phase loss and reversal monitoring in three-phase systems. It is designed to be integrated into electrical control panels where quick detection of abnormal phase conditions is critical for motor protection and process reliability.
Buying Guide: Key Considerations When Choosing Three-Phase Relay Switches
- Current rating and load type: Ensure the relay’s continuous current rating matches or exceeds your motor or heater load. For three-phase motors, consider inrush currents and whether a radiator or heat sink is needed for SSRs with higher current.
- Control signal compatibility: Check input control voltage (DC vs AC) and voltage range. Some models use DC inputs (4-32 VDC), while others accept AC control signals. Match with your control circuitry or PLC outputs.
- Output voltage range: Verify the SSR or relay output supports the system voltage (commonly 24-480 VAC) and that it can handle the three-phase load without overheating.
- Thermal management: High-current SSRs can generate heat. Choose units with adequate heat-sinking options or plan for cooling to prevent reduced reliability or trip conditions.
- Protection and safety features: Look for moisture, vibration, and EMI resistance, plus enclosures or plastic covers for safety on DC/DC or AC/DC interfaces in industrial environments.
- Mounting and size: Confirm dimensions and mounting hole patterns to fit control panels or DIN rails. Compact units may simplify panel design but may require additional cooling.
- Diagnostics and monitoring: Some relay and monitor relay products provide status outputs or fault detection (phase loss, reversal, undervoltage). These features help with preventive maintenance and uptime.
- Compatibility with control systems: If integrating with existing automation, verify compatibility with PLCs, motor controllers, and other field devices to minimize wiring complexity and ensure reliable operation.
- Reliability and lifecycle: Consider brand reputation, mean time between failures (MTBF) estimates, and the availability of spare parts or replacement modules for long-term projects.
- Safety and compliance: Ensure devices meet relevant UL/CE standards for industrial equipment and that any required insulation ratings and protection classes align with your installation environment.
