Best 3-Phase Motor Protection Relays for Safe, Efficient Drives
Protecting three-phase motors from overloads, phase loss, and faults is crucial for reducing downtime and extending equipment life. This guide highlights select, high-performance 3-phase motor protection relays available on Amazon, with a focus on reliability, flexibility, and ease of integration. Each product below is evaluated for its protection features, installation compatibility, and practical use in industrial settings such as manufacturing lines, HVAC systems, and pumps. Readers can compare core capabilities to decide which relay best fits their motor specs, voltage range, and maintenance requirements.
| Product | Brand | Current Range | Key Protection | Voltage Rating |
|---|---|---|---|---|
| Thermal Overload for Relay NR2-25 | PETiB | 0.1–25A (13 ranges) | Overload, Phase Loss | Up to 690V |
| NR2-36 23–32A Thermal Overload Relay | Walfront | 23–32A | Phase breaks, Overload | 690V |
| Schneider Electric DPER03 Easy TeSys | Schneider Electric | 0.25–0.4A | Overload, Phase faults, Unbalance | 600/690V |
| RHN-10K SHAUNI Three Phase | SHAUNI | 5.5–8.5A | Overload, Phase protection | Ui 600V |
| TG30 3-Phase Phase Sequence Relay | Kadimendium | Varies by model | Phase sequence, Fault output | 220–380V |
Thermal Overload NR2-25 for 3 Phase Motors
The PETiB NR2-25 thermal overload relay is designed for 3-phase motor protection with adjustable current settings from 0.1A to 25A across 13 ranges. It supports motors operating at 50/60 Hz and voltages up to 690V, offering suitability for long-term or intermittent operation in diverse industrial environments. Integrated phase loss protection and overload safeguards help maintain motor performance while compensating for ambient temperatures from -35°C to +70°C. The device is intended for easy installation with CJX2 contactors, simplifying mounting and reducing wiring complexity.
- Wide current range (0.1–25A) across 13 ranges
- Phase loss and overload protection with Class 10A trip
- Compatibility with CJX2 contactors (sold separately)
NR2-36 23–32A Thermal Overload Relay
The Walfront NR2-36 relay provides robust protection for three-phase motors with a 23–32A range and a 690V insulation rating. It guards against phase breaks and overloads, using precise temperature compensation and multiple protection mechanisms for safe motor operation. The unit supports both automatic and manual reset modes and includes trip indication along with a stop and test button for straightforward field testing and maintenance.
- High insulation rating (690V)
- Phase breaks and overload protection
- Automatic/manual reset options and test features

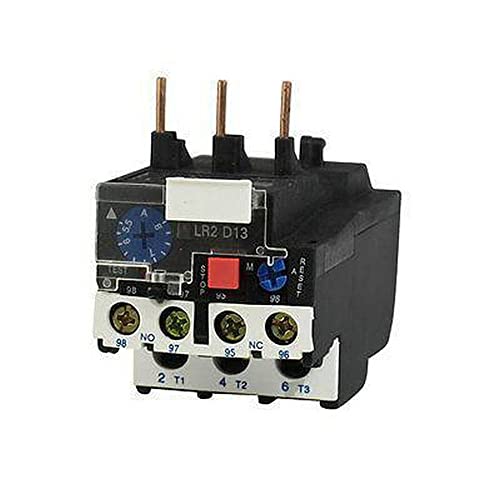

LR2 D13 3-Phase Thermal Overload Relay
The LR2 D13 relay covers 3-phase motor protection with a current range of 5.5–8A and a 1NO 1NC contact configuration. It provides reliable overload protection for compact motor setups and supports standard 3-phase control schemes. While compact, it offers dependable monitoring for short-term and sustained loads, contributing to reduced motor wear and downtime.
- 3-phase protection with 1NO 1NC contact
- Suitable for compact motor applications
- Simple integration into existing control circuits
Schneider Electric DPER03 Easy TeSys
The Schneider Electric DPER03 Easy TeSys relay is a compact, modular thermal overload solution designed for easy configuration and space-constrained HVAC, pumps, compressors, and other 3-phase motor applications. It supports 0.25–0.4A protection ranges and accommodates networks up to 600V cUL/690V IEC with Class 10 tripping. This relay is suited for quick installation and scalable protection in systems with limited cabinet space.
- Compact, modular design for tight spaces
- 0.25–0.4A protection range
- 600V cUL / 690V IEC insulation, Class 10 trip
SHAUNI RHN-10K Three-Phase Protector
The SHAUNI RHN-10K relay provides three-phase protection with a focus on phase loss and overload handling for motors rated around 9–13A. The device features a robust Ui rating of 600V and a 10A contact potential, making it suitable for mid-range industrial motors. Its rugged construction supports frequent operation in demanding environments while delivering consistent protection.
- 3P protection with 1NO 1NC configuration
- Ui up to 600V, 10A rating
- Appropriate for protecting motors in mid-range power systems
TG30 Phase Sequence Relay
The Kadimendium TG30 phase sequence relay protects motors by detecting phase sequence and voltage imbalance, and quickly driving protective outputs when a fault is detected. Suitable for 220–380VAC systems, this relay helps prevent damage from reverse phase, phase loss, and related faults. It is designed to maintain motor operation in the presence of electrical anomalies and supports long-term reliability in industrial settings.
- Detects phase sequence and voltage imbalance
- Protects motors against reverse phase and related faults
- Suitable for 220–380VAC systems
Buying Guide
Key considerations when selecting a 3-phase motor protection relay include compatibility with motor current, voltage, and control wiring, as well as the protection features required for your application. Consider the following perspectives:
- Current and voltage ratings: Ensure the relay’s current range covers the motor’s running and startup currents, and that insulation voltage matches or exceeds the system’s voltage.
- Protection features: Decide between overload protection, phase loss, phase imbalance, phase breaks, and phase sequence detection. Some relays offer automatic vs. manual reset and test functions for maintenance.
- Installation and compatibility: Look for relays designed to fit common contactor assemblies (for example CJX2 series), and verify mounting style and wiring simplicity to reduce installation labor.
- Environmental tolerance: Check operating temperature ranges and enclosure protection if the relay will be exposed to harsh environments or dust.
- Diagnostics and indicators: Trip indicators, status LEDs, and test buttons help with fault diagnosis and routine checks in industrial environments.
- Modularity and futureproofing: Consider modular relays that can be updated or expanded alongside changes in motor systems or control architectures.
For facilities with HVAC, pumps, and conveyors, selecting a relay with robust phase fault protection and reliable reset options minimizes downtime and protects motor windings from repeated stress. When mounting alongside contactors, choose a unit that simplifies wiring and reduces cabinet crowding to streamline maintenance and serviceability.
