Best 3-Phase GFCI Protection for Industrial Panels and 3-Phase Systems
Three-phase electrical systems demand robust ground-fault protection to prevent shock hazards and equipment damage. This guide highlights top-rated GFCI solutions designed for 3-phase applications, focusing on permanent-mount units, noise filtering, and UL943A listings. The selections span industrial-grade protection, surge mitigation, and weatherproof options—covering common 120/208V 3‑phase configurations used in commercial and light industrial environments.
| Product | Brand | Configuration | Key Feature |
|---|---|---|---|
| North Shore Safety PGFS-43105 | North Shore Safety | 3 Phase, Permanent Mount, 30A | Automatic reset, minimal noise |
| North Shore Safety PGFS-83105-137 | North Shore Safety | 3 Phase, Permanent Mount, 30A | Auto reset, enhanced filtering |
| Hubbell GFHW430 | Hubbell | 3 Phase, Hard-wired, 30A | UL943 compliant, easy wiring |
| Leviton B3120-YB | Leviton | Three-Phase WYE SPD 208Y/120 | High surge protection, Type 2 SPD |
| Sealproof 3-Gang Cover | Sealproof | Weatherproof outdoor cover | Weather resistance, easy mounting |
Note: The following products were selected for relevance to 3-phase GFCI protection, balancing protection features with practical installation considerations in American electrical environments. Each item includes a mix of hard-wired and panel-mount options, as well as surge protection elements that complement GFCI functionality in complex 3-phase layouts.
North Shore Safety PGFS-43105 3-Phase GFCI
The North Shore Safety PGFS-43105 is a 30 Amp, 120/208V, 3-phase GFCI designed as a permanent-mount device. It includes automatic reset and noise filtering to reduce nuisance trips in environments with electrical noise. UL943A listed, it’s tailored for industrial panels requiring consistent ground-fault protection across 3-phase circuits. The unit accommodates 18 inch, 10 gauge wiring, making it suitable for mid-size industrial feeders. This model emphasizes reliable protection with a straightforward reset process and precise 5 mA +/- 1 threshold, providing clear protection margins for sensitive equipment.
North Shore Safety PGFS-83105-137 3-Phase GFCI
The North Shore Safety PGFS-83105-137 offers a 30 Amp, 208V 3-phase permanent-mount GFCI with auto-reset and additional noise-filtering capabilities. It is listed under UL943A and emphasizes industrial-grade durability with a focus on minimizing electrical interference. This unit is well-suited for installations where continuous operation matters and where noise from heavy machinery could otherwise cause unwanted trips. The Class A design and robust construction support reliable performance in demanding environments.
Hubbell GFHW430 Hard-Wired GFCI
The Hubbell GFHW430 hard-wired GFCI is a 30 Amp, 3-phase device designed for straightforward circuit integration. It adheres to UL943 standards and uses a simple wire-in configuration, which can streamline installation in control panels or equipment enclosures. The black and yellow color coding aids in quick identification during maintenance. This unit’s reliability stems from a rugged design that supports heavy usage in industrial settings while maintaining precise trip thresholds and fast response to ground faults across 120/208V 3-phase systems.
Leviton Type 2 Surge Protective Panel
The Leviton B3120-YB Type 2 Surge Protective Panel is designed for 208Y/120 VAC three-phase systems. It provides substantial surge protection (130kA per phase) to shield sensitive equipment in commercial and industrial settings. This SPD can be a critical companion to GFCI protection, absorbing transient surges that could otherwise compromise grounding and protection circuits. It’s positioned for use both as a main service device in large facilities and as an SPD layer in branch panels, aligning with NEC recommendations for SPD installation in commercial environments.

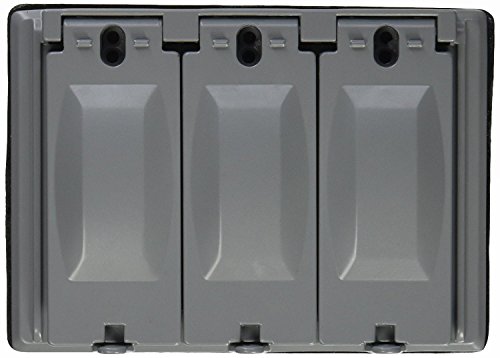

Sealproof 3-Gang Weatherproof GFCI Cover
The Sealproof 3-Gang GFCI weatherproof outdoor cover provides protection for outdoor GFCI configurations and facilitates reliable operation in harsh environments. The heavy-duty die-cast aluminum construction, weatherproof powder-coated finish, and included mounting lugs, closure plugs, and grounding screws simplify installation. While not a GFCI device itself, this cover is essential for maintaining integrity of outdoor or damp-location GFCI and surge protection setups, ensuring that moisture or debris do not compromise the protective system in 3-phase installations.
SIEMENS BOLTSHIELD 3-Pole Surge Protector
The SIEMENS BOLTSHIELD 3-Pole Plug-in Surge Protection Device delivers 65kA surge current rating with a 200kA short-circuit current rating and a nominal I-nominal rating of 20kA. While primarily a surge protection device, it complements 3-phase GFCI protection by mitigating transient overvoltages that can affect ground-fault detection and overall electrical stability in 120/208V 3-phase systems. It’s suitable for modular panel configurations and offers rapid response to lightning or utility transients that could otherwise stress GFCI components.
Buying Guide: Key Purchase Considerations for 3-Phase GFCI Protection
- Voltage and phase compatibility: Ensure the device supports 120/208V 3-phase systems common in many American facilities. Verify whether a permanent-mount, hard-wired, or plug-in configuration best fits the panel design.
- UL943A and compliance: Look for UL943A listings to confirm suitability for industrial and commercial environments with reliable protection thresholds. Check for Class A or other trip-class designations relevant to installation standards.
- Trip thresholds and auto reset: GFCIs with low trip thresholds (e.g., around 5 mA) and auto-reset features minimize nuisance trips while maintaining safety. Consider additional noise filtering if the facility runs high-power equipment that can generate interference.
- Physical construction and mounting: Permanent-mount and hard-wired units generally offer robust protection for control panels. Weatherproof or outdoor-rated covers are essential for exposed installations to maintain reliability over time.
- Surge protection synergy: Pair GFCIs with Type 2 SPD devices to guard against transient surges. A well-coordinated system reduces wear on protection components and prolongs panel life.
- Compatibility with 3-phase configurations: Confirm that the device supports three-phase WYE or delta configurations and provides consistent ground-fault protection across all three legs.
- Installation ease and maintenance: Favor units with clear wiring diagrams, durable terminals, and accessible reset mechanisms. A simple maintenance routine reduces downtime and improves long-term reliability.
- Certification and listings: In addition to UL, check for cUL or other regional listings if the installation location requires specific certifications for electrical safety and compliance.
- System integration: For facilities combining protection, surge, and weather resistance, evaluate how a single package or a coordinated set of components meets your protection philosophy without creating conflicting trip schemes.
The selections above illustrate a balanced approach to 3-phase GFCI protection, emphasizing reliable trip performance, robustness in industrial environments, and the practical realities of wiring and maintenance. When planning a project, it is advisable to consult a licensed electrician or electrical engineer to ensure compatibility with existing panels, feeders, and local code requirements.
