Best 3-Phase Fuse Block Solutions for Industrial Panels
Choosing the right 3-phase fuse block is essential for protecting equipment, simplifying maintenance, and ensuring reliable power distribution in industrial panels. The following selections cover 3-pole and multi-pole configurations with features like DIN-rail mounting, LED fault indicators, and quick-connect options. Each product emphasizes reliability, ease of installation, and compatibility with common fuse types. Use this guide to compare options and identify the best fit for your system’s voltage, current, and wiring needs.
| Product | Brand | Type | Key Feature |
|---|---|---|---|
| Baomain 3 Pole Cylindrical Fuse Holder | Baomain | 3-Pole Holder | DIN Rail Mount, LED fault indicator |
| Baomain RT18-32 Fuse Holder Base | Baomain | 3-Pole Base + Fuses | LED indicator, easy replacement |
| Cooper Bussmann BMM603-3SQ | Bussmann | 3-Pole Block | Screw/quick connect |
| SMD Triple ANL Fuse Block | SMD | 3-Way ANL | Aluminum/Stainless hardware |
| Recoil MFH13 3-Way Mini-ANL | RECOIL | 3-Channel ANL | Solid brass construction |
Baomain 3 Pole Cylindrical Fuse Holder
The Baomain 3 Pole Cylindrical Fuse Holder is designed for 32A/690VAC systems, compatible with RT18-32 fuses (10x38mm) and suitable for both industrial and household protection needs. It mounts securely on a 35mm DIN rail with tunnel terminals, offering vibration-resistant wiring and a controlled 2.5 Nm torque. A red LED indicator signals when a fuse has blown, enabling quick fault detection and maintenance planning.
New OEM BMM603-3SQ Three-Pole Fuse Block
This 新 OEM part (BMM603-3SQ) offers a three-pole fuse block solution with screw and quick-connect options. It is designed for straightforward installation and reliable multi-pole protection in compact spaces, making it a practical choice for panel layouts requiring a three-phase block.

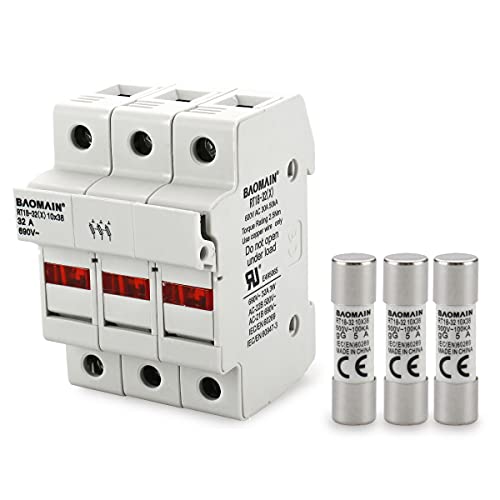

Baomain RT18-32 Fuse Holder Base with Fuses
The RT18-32 base includes a 3-pole fuse holder with a built-in LED indicator, designed for easy replacement and maintenance. The set provides a ready-to-wire, all-in-one protection package suitable for 3-pole configurations in DIN rail installations, prioritizing quick service and visible status indicators.
Cooper Bussmann BMM603-3SQ: Midget Fuse Block
The BMM603-3SQ from Bussmann is a compact midget fuse block with options for screw or quick-connect termination. It supports a 3-pole arrangement for multi-line protection and is commonly used in smaller control panels where space is at a premium.
Fuse Block, Industrial, 30A, 2 Pole
Although listed as a 2-pole unit, this industrial fuse block by Mersen is a robust option for high-current protection. It presents a wide voltage and current range with durable molded polycarbonate housing and UL/CSA certification, suitable for open-frame or panel-m mounted configurations where two power lines require protection.
SMD Triple ANL Fuse Block
The SMD triple ANL fuse block provides a three-way distribution option with aluminum and stainless hardware for corrosion resistance. It is suitable for high-power automotive, marine, or industrial systems requiring reliable ANL fusing across three channels.
Recoil MFH13 3-Way Mini-ANL Fused Distribution Block
The Recoil MFH13 distributes power through three ANL channels with 60A, 80A, or 100A fuses, using 0/2/4 gauge inputs and 3/4 gauge outputs. Brass construction and marine-grade finish offer durability and efficient current transfer in demanding environments.
3 Way Mini-ANL Fuse Block for Auto/UTV
This compact three-pole ANL distribution block is designed for automotive, UTV, and boat applications, supporting 2 input lines and 3 output lines per pole. It includes MIDI-style fuses with common current ratings for flexible protection across three channels and varied wiring configurations.
Buying Guide: Key Considerations for 3-Phase or Multi-Channel Fuse Blocks
- Voltage and current ratings: Verify that the block supports your system’s operating voltage and the maximum fuse current required for each phase or channel, ensuring safe protection without nuisance blows.
- Number of poles and configurations: Choose a block with the appropriate pole count (3-pole, 2-pole, or multi-channel) to match your three-phase setup and wiring scheme.
- Mounting method: DIN rail mounting is common in control panels; confirm the rail width and stability, and whether the design includes a snap-lock or tool-free installation.
- Indicator features: LEDs or diagnostic indicators help quickly identify blown fuses, reducing downtime during maintenance and fault tracing.
- Termination options: Consider screw terminals, quick-connects, or clamp-style connections based on your wiring harness and ease of replacement.
- Protection type and fuse compatibility: Ensure compatibility with standard fuse sizes (e.g., 10x38mm RT18-32 or ANL fuses) and that the block provides proper short-circuit and overload protection for your application.
- Housing and material: Flame-retardant housings and corrosion-resistant finishes (e.g., brass, stainless, or coated metals) extend life in industrial environments.
- Maintenance and replacement: Look for clear access to fuses, easy replacement without tools, and visible status indicators to streamline servicing.
- Certifications and safety: UL/CSA and CE marks indicate compliance with safety and performance standards relevant to the U.S. market.
