Best 3-Phase Current Data Loggers for Precise Power Monitoring
For engineers, installers, and energy auditors, a reliable 3-phase current data logger is essential to capture real-time current, voltage, and power quality across all phases. This guide highlights five capable models that support accurate measurement, spectral analysis, and waveform logging. Each entry includes key specifications and features to help compare performance, data capture, and ease of use in electrical systems.
| Product | Brand | Key Capabilities |
|---|---|---|
| HT Instruments XL422 3-Phase Current Data Logger | HTI | TRMS up to 2500A, programmable sampling, manual recording trigger |
| ETCR5000 3 Phase Power Quality Analyzer (ETCR040B clamp) | ETCR | 4-channel true RMS, harmonics, THD, phasor, up to 150 transient saves |
| ETCR5000 3 Phase Power Quality Analyzer (ETCR068B clamp) | ETCR | Real-time waveforms, up to 1000A, 4 channels, amplitude/phase analysis |
| Solar System Analyzer ME435 (NRC150 coils) | ZLPLSUPEX | 3P measurement up to 3000A, IEC accuracy Class 0.5 |
| DW-6093 3 Phase Power Analyzer | HKNDT | True RMS, multiple wiring configurations, real-time power values |
Note: This article compares products based on listed specifications and features. Always verify compatibility with your system before purchase.

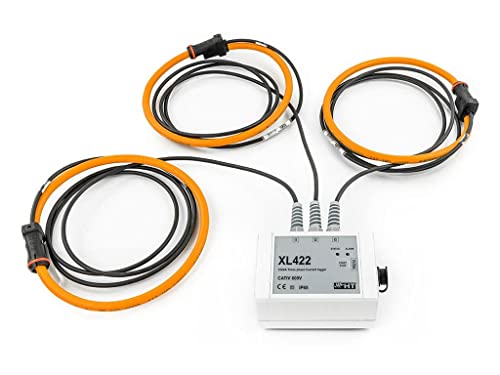

HT Instruments XL422 3-Phase Current Data Logger
The HTI XL422 is designed for robust 3-phase current monitoring with true RMS sensing across high current ranges. It offers programmable sampling periods, enabling tailored data capture intervals for long-duration logging. A manual recording trigger allows operators to start and stop data collection on demand, supporting targeted measurements during transient events or specific test windows. Typical use cases include motor drive analysis, grid impact studies, and utility fault investigations. The instrument emphasizes straightforward data collection with dependable current measurement up to 2500 A and flexible logging options.
10A-6000A Portable Electric Energy Meter 3 Phase Logger (Mi550 + NRC200)
This unit functions as a 3-phase power quality and data-logging device, measuring currents and voltages with real-time RMS values for all three phases and neutral. It computes power factor, real power, and reactive power, offering a broad view of system performance. The design supports waveform graphics and data storage suitable for post-analysis, making it useful for audits, commissioning, and ongoing monitoring in mixed-load environments where precise power quality data is required.
ETCR5000 3 Phase Power Quality Analyzer with ETCR040B Clamp
The ETCR5000 offers a comprehensive test function with four channels of real-time voltage and current waveforms. It provides true RMS measurements, DC components, and peak-to-peak values, along with harmonics up to 50x and THD. Phasor diagrams and harmonic histograms support in-depth power quality assessment. The device captures transient events and stores up to 150 waveforms for post-event analysis, making it suitable for understanding faults, inrush, and stability in electrical networks. It also includes startup current monitoring for rise/fall envelope analysis.
ETCR5000 3 Phase Power Quality Analyzer with ETCR068B Clamp
This variant mirrors the ETCR5000 feature set with a higher-current clamp option, supporting a wide range from 1.0 A to 1000 A. It emphasizes real-time voltage/current waveforms across four channels, true RMS, harmonic analysis, and THD measurements. The device is designed to detect transient events and store a substantial number of waveforms for analysis, including start-up current behavior and envelope curves. Its flexibility makes it appropriate for complex 3-phase installations requiring detailed dynamic data and post-event correlation.
Solar System Analyzer ME435 (NRC150 Coils)
The ME435 provides accurate energy measurement with NRC150 coils capable of handling up to 3000 A. It emphasizes high-precision energy data within a 3-phase context, suitable for data logging in high-load electrical systems. It offers IEC Class 0.5 accuracy, denoting reliability for precision energy auditing and performance verification in commercial and industrial environments. This model is positioned for detailed logging during long-term monitoring where accuracy is critical.
DW-6093 3 Phase Power Analyzer
The DW-6093 supports multiple 3-phase wiring configurations and provides true RMS voltage and current measurements. It supplies true power values (KW, MW, GW) and supports 1P/2W, 1P/3W, 3P/3W, and 3P/4W configurations for flexible installation. This model aims to offer a comprehensive snapshot of a system’s power usage, enabling monitoring and logging across various load profiles and network configurations.
Supco LCV LOGiT Current and Voltage Data Logger
The LCV LOGiT focuses on external current probe and voltage measurements with alarm indicators for current and voltage anomalies. It supports simultaneous single-phase monitoring and can be used to verify power conditions for three-phase applications by deploying multiple units. This model is suitable for ensuring consistent operation in equipment rooms or distributed loads where rapid detection of anomalies is essential.
Buying Guide: Key Considerations for 3-Phase Data Loggers
- Current and voltage range: Ensure the device accommodates your system’s maximum current and voltage without saturating or clipping measurements.
- Sampling rate and data storage: Higher sampling rates capture transient events; confirm onboard storage or the ability to export data for long-term logging.
- True RMS vs. average sensing: True RMS provides accurate measurements under non-sinusoidal waveforms common in modern power systems.
- Power quality features: Look for harmonic analysis, THD, phasor diagrams, and transient recording to diagnose faults and improve efficiency.
- Number of channels and phasing: Four-channel or more devices can monitor multiple phases simultaneously; verify compatibility with your 3-phase, 4-wire networks.
- Clamps and sensor options: Current clamps (various inner diameters) extend measurement range without direct wiring, useful for retrofit projects.
- Data access and integration: Check for USB, SD card, or cloud export capabilities and compatibility with analysis software.
- Durability and safety: For field use, consider rugged enclosures, isolation ratings, and safety certifications appropriate to your environment.
- Price-to-performance balance: Higher-end models offer more features but assess whether advanced capabilities align with your project needs.
- Vendor support and updates: Choose brands with good technical support and ongoing firmware updates to ensure long-term reliability.
When selecting a 3-phase current data logger, prioritize applications: diagnostic logging during commissioning, continuous monitoring for energy efficiency, and fault analysis for power quality. A device with robust logging, comprehensive harmonic and transient analysis, and flexible data export will serve most industrial and commercial uses.
