Best 200 Amp Feed Through Lug Kit Options for Safe Subfeed Connections
When upgrading electrical distribution, a reliable 200 amp feed through lug kit is essential for safe, organized subfeed connections. This guide helps American buyers choose the right 200A lug kit for main service panels or subpanels, covering installation ease, compatibility, and long-term durability. It highlights top-rated options commonly used in commercial and residential projects, clarifying who benefits most from each selection. Whether you’re replacing a worn lug kit or planning a new service run, the right kit improves continuity and reduces wiring clutter.
Summary table of selected products (quick reference):
- BRPSF225 EATON – New SUB-Feed Lug Block — Best for general purpose Eaton panels.
- Square D HOML2225 225 Amp HOML2200 200 amp Subfeed Lug Block — Best for Homeline systems.
- 225A LUG KIT — Best value option with long warranty.
- SIEMENS ECCS2 Ground Bar Lug Kit — Best for Siemens panels with flexible wire range.
- Eaton BRL200 Main Lug Kit — Best for Cutler-Hammer main lug conversions.
BRPSF225 EATON Sub-Feed Lug Block
The BRPSF225 from Eaton is designed for straightforward sub-feed connections within compatible Eaton panels. It is a practical choice when replacing an aging lug block or expanding a panel’s feed capacity. This option is best for buyers already aligned with Eaton components, seeking a reliable, readily available module that mirrors factory design standards. Consider this kit when ease of installation and compatibility with Eaton’s system family matters most.
Who it’s best for: homeowners or contractors using Eaton panels who want a direct, drop-in replacement with predictable performance. Why selected: it aligns with Eaton’s engineering and installation practices, supporting a clean upgrade path. Caution: verify panel compatibility and housing footprint to ensure a proper fit in your enclosure.
Square D HOML2225 Subfeed Lug Block
The Square D HOML2225 model is designed specifically for Homeline systems, accommodating a 200 amp service with a ready-to-use lug configuration. It’s a solid choice for installations where Homeline panels dominate the electrical setup. This lug kit supports a clean, organized subfeed connection, reducing cabinet clutter and enhancing service reliability.
Who it’s best for: professionals or DIY installers working on Homeline-equipped buildings. Why selected: optimized for Homeline compatibility, enabling a smoother upgrade path. Caution: ensure the kit’s lug arrangement matches your panel’s terminal layout to avoid misfit issues.
225A LUG KIT
The 225A LUG KIT is positioned as a cost-effective option with a straightforward installation path. It features a robust build and a 10-year warranty, signaling durability for long-term service. This kit is suitable for standard 200 amp subfeed runs in a variety of panel brands. It’s a practical choice when warranty support is a priority and when the form factor matches the enclosure requirements.
Who it’s best for: budget-conscious buyers seeking a dependable lug kit with extended warranty coverage. Why selected: offers long-term protection and a simple installation process. Caution: confirm the exact lug configuration and wire range to ensure compatibility with your panel and conductor sizes.

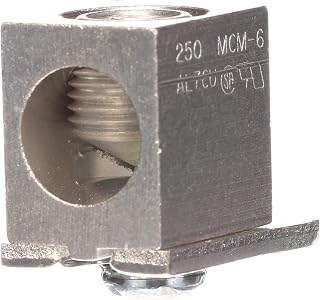

SIEMENS ECCS2 Ground Bar Lug Kit
The Siemens ECCS2 Ground Bar Lug Kit is designed to support a broader wire range from #6 to 250 MCM, offering flexibility for heavier feeder applications. It includes accessories like a collar strap, making it a practical upgrade to Siemens panels that require robust grounding and lug solutions. This kit stands out for adaptability across large conductors and multi-wire arrangements.
Who it’s best for: installers working with Siemens panels needing a versatile lug kit that accommodates a wide conductor range. Why selected: broad wire compatibility and integrated accessories simplify complex feeder configurations. Caution: verify that your panel accepts ECCS2 in its intended mounting location and check charge/distribution requirements for taller installations.

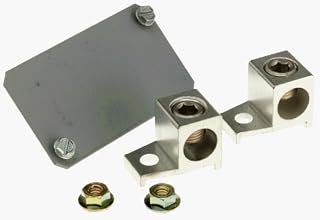

Eaton BRL200 Cutler Hammer Main Lug Kit
The Eaton BRL200 is a main lug kit designed for 120/240 VAC systems with 200 A and two poles, compatible with 1-300 KCMIL conductors. This kit is advantageous when converting a main lug into a subfeed arrangement or upgrading a panel’s feeder capacity. It emphasizes reliability in Eaton’s Cutler-Hammer line and supports broad conductor options for phased installations.
Who it’s best for: projects requiring a robust main lug conversion within Eaton-Cutler-Hammer ecosystems. Why selected: strong compatibility and scalable conductor support. Caution: ensure the kit’s form factor matches your panel enclosure and there are no clearance conflicts with existing busbars.
Buying Guide
What to check before buying a 200 amp feed through lug kit
- Panel compatibility: Confirm that the lug kit is designed for your panel brand and model family (Eaton, Square D, Siemens, etc.).
- Conductor range: Verify the allowed wire size and type (from #6 to 250 MCM or similar) to prevent undersizing or oversizing issues.
- Mounting and footprint: Check the physical dimensions and mounting method to ensure proper fit inside the panel enclosure.
- Warranty and durability: Look for kits with robust warranties or proven long-term service life in your usage scenario.
- Installation complexity: Assess whether the kit supports straightforward replacement or requires additional hardware or accessories.
- Grounding and bonding: Ensure the kit integrates with existing grounding schemes and complies with local electrical codes.
Key decision questions
- Is the panel brand clearly matched to the lug kit to avoid incompatibility?
- Do you need a kit that supports large conductors (up to 250 MCM) or a more standard range?
- Should you prioritize a kit with a long warranty or the most flexible wiring options?
- Are there space or clearance limitations inside the panel that could affect assembly?
Comparison snapshot
| Product | Best For | Notable Limitation |
|---|---|---|
| BRPSF225 Eaton | General Eaton panels | Panel compatibility check needed |
| Square D HOML2225 | Homeline systems | Specific to Homeline layout |
| 225A LUG KIT | Value with warranty | Verify exact fit |
| SIEMENS ECCS2 | Flexible wire range | Panel compatibility required |
| BRL200 Main Lug Kit | Eaton Cutler-Hammer conversions | Panel enclosure fit |
FAQ
- What is a 200 amp feed through lug kit used for? It provides a secure connection point for subfeeds from a main service or upgrade path within a panel.
- Do lug kits require professional installation? Depending on the panel and local codes, professional installation is often recommended for safety and compliance.
- Can I mix lug kits across brands? It’s best to match kit brand to panel brand to ensure compatibility and warranty integrity.
- What should I avoid when selecting a lug kit? Avoid selecting a kit with an incorrect conductor range or incompatible mounting footprint for your panel.
- How do I know which kit is right for my panel? Check panel model, brand, conductor size, and the lug configuration required by the service upgrade plan.
- Is warranty important? Yes, a longer warranty can indicate durability and support for long-term installations.
