Best 200 Amp Distribution Block Options for Your Power System
Selecting a reliable 200 amp distribution block is essential for organizing high-current wiring in automotive, marine, RV, or solar setups. The following picks are among the most relevant and well-rated blocks on Amazon, offering solid performance, corrosion resistance, and easy installation. This guide presents five solid choices and a buying guide to help you compare features such as voltage rating, amperage capacity, number of posts, and protective enclosures.
Summary of chosen products:
| Product | Brand | Amperage Rating | Posts | |
|---|---|---|---|---|
| KnuKonceptz Bassik High Current 3 Way Fuse Distribution Block | KnuKonceptz | 200 A | 3 (fused) | Compact, 0/4 gauge input, two fused outputs |
| Ampper Power Distribution Block Bus Bar 12V, 4 x M8 Studs | Ampper | 200 A | 4 M8 studs | Heavy-duty, includes cover |
| Ampper Power Distribution Block Bus Bar 12V, 6 x M8 Studs | Ampper | 200 A | 6 M8 studs | High-current, robust for heavy wiring |
| MOFEEZ Power Distribution Block Bus Bar | MOFEEZ | 250 A | 4 x 5/16″ posts | Low resistance, corrosion protection |
| RECOIL ZDFGK Fuse Distribution Combo Blocks | RECOIL | Not specified | 2 (2-way block + ground) | Marine-grade finish, dual fuse/ground block |
KnuKonceptz Bassik High Current 3 Way Fuse Distribution Block
This compact fuse distribution block is designed to handle high current with fused outputs. It accepts 0 or 4 gauge input and provides two fused 0 gauge outputs plus one fused 4 gauge output. The construction uses set screws to secure wires, reducing the need for adapters. A suitable option for small to mid-size high-current needs in automotive or marine applications, when a clean, fused distribution is required.
RVBOATPAT Power Distribution Block 12V 150A
Designed as a marine bus bar, this 12-volt distribution block can handle up to 150A and is built to manage wiring in boats, RVs, or automotive projects. It features stainless terminal screws and a dedicated ground and positive bus bar arrangement. The kit includes multiple terminals and covers to simplify installation and improve organization. It’s a practical choice for users who need robust connectivity in wet or harsh environments, though it targets slightly lower amperage than a 200A system.
MOFEEZ Power Distribution Block Bus Bar
The MOFEEZ block is built for stronger current handling with four 5/16″ posts and six #8 stainless steel terminal screws. It supports up to 250A and operates safely at up to 48V DC or 300V AC. With nickel-plated brass for low resistance and corrosion protection, this unit includes a removable nylon cover for additional safety and a flame-resistant base. It’s well-suited to marine, automotive, or RV projects requiring reliable high-current distribution.
Ampper Power Distribution Block Bus Bar 12V, 6 x M8 Studs
This Ampper model emphasizes heavy-duty construction with six M8 studs and a strong nickel-plated brass bus bar. It’s designed for 12-48V DC systems and up to 200A continuous current, with a protective cover and insulated nylon housing for safety. It’s a practical option for families upgrading their vehicle electricals, boats, or solar setups that require a more robust distribution point.

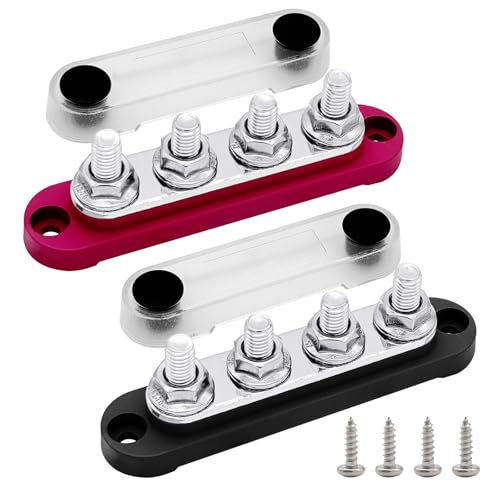

4 x M8 (5/16″) Ampper 4.3″ 200A Marine BusBar
This Ampper block offers a compact 4-post configuration with four M8 studs, designed for 12V-48V DC systems and up to 200A continuous operation. It features a durable nickel-plated brass construction, a protective cover, and a flame-resistant nylon housing. The design emphasizes ease of installation and safe operation in automotive, marine, or solar-powered setups where space is at a premium but high current is needed.
Buying Guide: Key Considerations For 200A Distribution Blocks
- Amperage rating and headroom: Choose a block that meets or exceeds your maximum continuous current needs. Some models list 200A, 150A, or 250A—select based on your system’s peak load and future expansion.
- Voltage range and compatibility: Ensure the block supports the system voltage (12V, 24V, or 48V DC; some blocks tolerate AC up to 300V). This matters for automotive, marine, or solar applications.
- Post type and wire gauge compatibility: Look at the number and size of posts (M8, 5/16″, etc.) and the input/output wire gauges accepted (0 AWG, 4 AWG, etc.). This determines the wires you can connect and how much current you can safely carry per connection.
- Protection and enclosure: A protective cover, insulated base, and flame-retardant materials improve safety and reduce the risk of short circuits in rough environments like boats or off-road vehicles.
- Material quality and corrosion resistance: Brass or copper bus bars with nickel plating offer better conductivity and corrosion resistance, especially critical in marine settings.
- Enclosure style: Decide between open-back, covered, or fully enclosed units. Covered variants reduce exposure to moisture and dust, which is beneficial for outdoor installations.
- Ease of installation: Consider the layout of posts, screw terminals, and included mounting hardware. A design that minimizes wire bending and provides secure fasteners saves time and reduces risk of loose connections.
- Protection against accidental shorts: Nylon bases and protective covers help prevent accidental contact with live conductors, which is important in environments with vibration or movement.
Additional Considerations
- Fuse integration: Some blocks include fuse blocks or fuse protection (for example, KnuKonceptz 3-way fused distributor). If protecting sensitive electronics, fuse placement and rating should align with your system’s design.
- Grounding strategy: Ensure a clear separation of positive and negative paths when wiring multiple components to reduce interference and maintenance complexity.
- Compatibility with solar systems: For off-grid solar installations, verify that the distribution block handles DC conditions typical of solar charge controllers and inverters.
- Maintenance and accessibility: Choose blocks that allow easy inspection of connections and quick access for tightening screws or replacing fuses when needed.
All the products above provide viable routes to a robust 200A distribution solution, with variations in post configurations, fuse integration, and enclosure features. Review your specific installation environment, required wire gauges, and space constraints to determine the best match. This selection emphasizes durability, high-current handling, and ease of installation to support reliable electrical distribution in American automotive, marine, and camping applications.
