Best 13-Terminal Meter Socket Guide for Modern Electrical Systems
Choosing the right meter socket is essential for reliable electrical service, especially when dealing with higher amperage and multiple terminals. This guide highlights five relevant options and offers practical considerations for selecting a 13-terminal or similarly featured meter socket setup. Each product is examined for construction, compatibility, and key features to help you compare at a glance and make an informed purchase.
| Product | Brand | Key Feature |
|---|---|---|
| U4801-XL-5T9 Ringless Meter Socket | Generic | 200A, 5 terminals, lever bypass |
| GENERIC 1 Piece Round Meter Socket Terminal | GENERIC | Stainless spring clip, copper jaws |
| Eaton 1008836CH Meter Base Socket | Eaton | 320A continuous, ringless, 4-terminal |
| Rawolp 9076 1/2-Inch Drive Penta Socket Tool | Rawolp | Penta 5-point design, heavy-duty |
| KNIPEX 98 37 13 3/8 1,000V Insulated Socket | KNIPEX | Insulated, 13 mm hex socket, high voltage rated |
U4801-XL-5T9 Ringless Meter Socket
The U4801-XL-5T9 is a ringless meter socket designed for surface mounting with 5 terminals and lever bypass capability. It supports a 200A continuous rating and accommodates a wide range of wire sizes (6 AWG to 350 kcmil) for both load and line sides. The enclosure uses G90 galvanized steel with a powder-coated finish for corrosion resistance. Its adaptable entry options and 1-position meter arrangement help streamline installation in overhead or underground applications, reducing service interruptions during maintenance or upgrades.
GENERIC Round Meter Socket Terminal
This round meter socket terminal is designed for universal compatibility with U.S. GE ANSI meter sockets. It features a stainless steel spring clip and copper jaws, intended to ensure reliable and secure electrical contact. While primarily a terminal component, it plays a crucial role in maintaining stable current pathways within a meter base system. It is suitable for standard residential or commercial installations that require a robust, easy-to-service interface between the meter socket and the meter equipment.

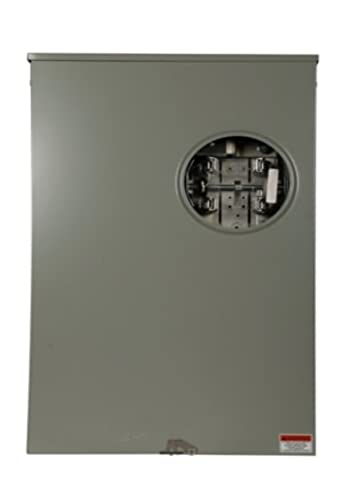

Eaton 1008836CH Meter Base Socket
The Eaton 1008836CH is a 320A continuous, 400A maximum, single-phase ringless meter base. It provides four terminals and is designed for MEG-approved installations, making it suitable for larger residential or light commercial service upgrades. With a reinforced enclosure and dedicated mounting provisions, this base ensures secure, durable operation in challenging environments. The lever bypass option on compatible models reduces downtime during utility or service work while maintaining service continuity.
Metric Pack 150 Series Terminals
The Metric Pack 150 Series provides a set of male and female terminals along with sealer terminals, designed for Metri-Pack 150 connectors. This kit is useful for making secure, low-profile connections in electrical harnesses and meter-related cabling. While not a traditional meter socket by itself, it supports the wiring interfaces that feed into and out of meter sockets in many modern electrical installations. The package includes multiple terminals for quick, bulk splicing and ensuring consistent contact quality.
KNIPEX 13 mm Insulated Hex Socket
The KNIPEX 13 mm insulated hex socket is designed for use with metric and imperial hex fasteners, rated for up to 1,000V. This tool supports precise torque application and safer handling in electrical work, especially when mounting or adjusting meter-related hardware. Its chrome-plated finish offers durability and corrosion resistance, making it suitable for heavy-use environments where reliable, repeatable performance matters during installation or maintenance tasks.

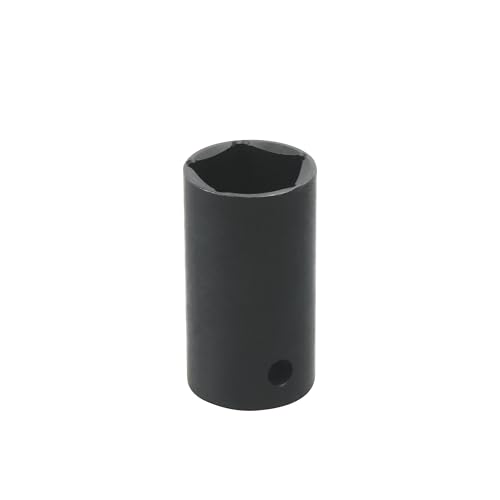

Rawolp 9076 1/2-Inch Drive Penta Socket Tool
The Rawolp 9076 Penta socket offers a five-point grip designed for high-torque engagement with pentagonal fasteners. Built from impact-grade steel, it is intended for demanding applications where a secure hold on pentagonal bolts is essential. While not a meter socket itself, this tool can support service work around meter bases, enclosures, and utility connections, especially when dealing with non-standard fasteners that appear in field installations.
Buying Guide: Key Purchase Considerations for 13-Terminal Meter Sockets
- Amperage rating and by-pass options: Ensure the socket supports the electrical load you expect. Ringless designs with lever bypass improve service continuity during maintenance without exposing live circuits.
- Terminal count and layout: A 13-terminal or similar configuration may be achieved through compatible base designs or accessories. Verify that the combination of line and load terminals meets your wiring plan and local code requirements.
- Material and finish: Galvanized steel with corrosion-resistant finishes (e.g., G90 steel with powder coat) enhances durability in outdoor or damp environments. Look for UL/underwriters lab certifications and Type 3R enclosures for weather resilience.
- Installation orientation and mounting: Surface-mount or flush-mount options impact how you route feeders and meters. Confirm compatibility with overhead or underground service routes and any required closing plates or hubs.
- UL/MEG approvals and standards: For any commercial or larger residential installation, ensure components meet applicable standards and approvals (UL listed, MEG-approved, etc.). This affects safety, reliability, and compliance with local codes.
- Compatibility of accessories and terminals: If using round meter socket terminals or Metri-Pack style terminals, ensure they integrate cleanly with your chosen meter base and the meter’s manufacturer specifications.
- Maintenance and ease of service: Select designs that allow easy meter removal or bypass during service without disrupting electricity to the entire premises. The lever bypass feature is a notable advantage in many setups.
- Cost versus longevity: While price is a factor, prioritize durability, warranty, and the expected service life in your environment. Outdoor installations benefit most from corrosion-resistant materials and rugged enclosures.
Additional Perspectives
When planning a meter socket upgrade or new installation, consider whether you need a single-phase or three-phase configuration, the expected load growth, and the potential need for future expansion. For retrofits, confirm existing conduit, trenching, and access dimensions. In commercial settings, coordination with utility providers and building codes is essential to ensure a smooth commissioning process. Evaluating both manufacturer reliability and local support networks can reduce downtime and repair costs over the system’s lifetime.
