Best 120 Volt Solenoid Actuator Solutions for Precise Control and Reliability
120 volt solenoid actuators are a versatile choice for automation, irrigation, valve control, and equipment automation. This article presents five reliable options and compares key features to help you select the right solenoid valve or actuator for your system. Each product comes with a brief overview of its capabilities, typical applications, and performance notes to support informed purchasing decisions.
| Product | Brand | Stroke / Range | Coil Voltage | Typical Use |
|---|---|---|---|---|
| Dormeyer Solenoid, 120VAC, 1/8″ to 1-1/4″ | Dormeyer | 1/8″ to 1-1/4″ | 120 V AC | General purpose actuation |
| Dormeyer Solenoid, 120VAC, 1/8″ to 1″ | Dormeyer | 1/8″ to 1″ | 120 V AC | Compact stroke applications |
| ASCO MP-C-080 238610-032-D | Asco | 1/4 in NPT port | 120 V AC | Valve control and automation |
| DORMeyER Solenoid, 120VAC, 1/8″ to 1-1/4″ | CAI – DORMEYER | 1/8″ to 1-1/4″ | 120 V AC | General purpose actuation |
| U.S. Solid 3/4″ Brass Solenoid Valve | U.S. Solid | 3/4″ NPT | 110 V AC | Water, air, and diesel applications |
The following product profiles summarize core specifications, typical applications, and what to consider when selecting a 120 V solenoid actuator for your system.
Dormeyer 120V Solenoid With Wide Stroke Range
The Dormeyer solenoid features a laminated construction designed for reliable operation with a 120 V AC coil. Its stroke range spans from 1/8 inch to 1-1/4 inches, enabling flexible actuation for varied valve or mechanism needs. This model is described as continuous duty, meaning it can operate without frequent rest cycles in many commercial and industrial settings. The laminated core serves to minimize energy loss and heat generation during prolonged use, contributing to longer service life in automated runs. Consider this option if your application requires a longer stroke and robust duty performance.
Key points to evaluate include: compatibility with your valve or plunger system, mount compatibility, and how the extended stroke range might affect actuated components. Electrical compatibility with standard 120 V AC outlets is a plus for straightforward integration in many installations.
Dormeyer 120V Solenoid With 1/8″–1″ Stroke
This Dormeyer variant provides a laminated solenoid coil suitable for continuous operation at 120 V AC, with a stroke range of 1/8 to 1 inch. The compact stroke length makes it well-suited for tight spaces where full travel is not required, while still delivering reliable actuation. The continuous-duty specification supports ongoing control tasks in HVAC, irrigation, or automated valve assemblies. When selecting this unit, confirm the required end-of-stroke alignment and plunger travel to ensure full engagement at the target valve position.
Consider practical factors such as mount orientation, solenoid response time, and compatibility with the controlled system’s electrical drawings. In environments with vibration or temperature swings, verify the device’s mounting method and seal integrity to avoid misalignment or valve leakage.
ASCO MP-C-080 238610-032-D Coil 120V
The ASCO MP-C-080 model delivers 120 V AC coil operation with a 1/4 inch NPT port size suitable for common solenoid valve configurations. This configuration is designed to fit standard piping and valve assemblies, offering dependable sealing and consistent action for fluid control tasks. The NPT interface makes it compatible with various plumbing systems, enabling straightforward integration into irrigation, water management, or industrial automation lines. When evaluating this option, assess the valve’s flow requirements, pressure ratings, and whether the 1/4 inch port aligns with your existing fittings.
Important considerations include valve material compatibility (often brass or stainless steel in 1/4″ NPT offerings) and the coil performance under operating temperatures. Verify replacement part availability and the manufacturer’s recommended duty cycle to avoid premature wear.

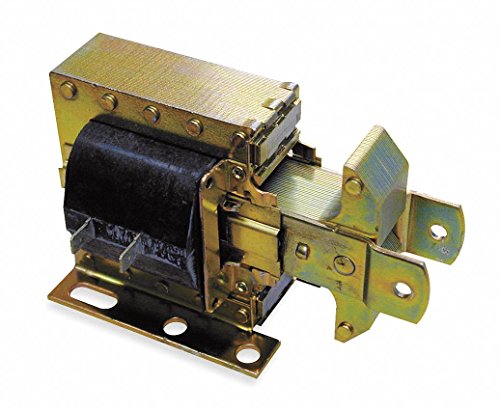

CAI – DORMEYER 120V Solenoid With Long Stroke
This Dormeyer-branded solenoid (CAI – DORMEYER) offers a 120 V AC coil with a stroke range from 1/8 inch to 1-1/4 inch and continuous-duty operation. Laminated construction is typical for reliable magnetic performance and reduced energy loss. This model is suitable for valve actuation, linear motion, or other automation tasks requiring a longer travel than a compact solenoid but without complex control electronics. For optimal results, determine whether the deployment environment demands weatherproofing or higher insulation and ensure the fixture supports the solenoid’s weight and pull force.
Focus on the stroke-to-force requirements of your application, the mounting footprint, and compatibility with end-of-stroke sensing if you require precise travel control. Review the installation hardware provided by the supplier to ensure a secure fit in your assembly.
U.S. Solid 3/4″ Brass Solenoid Valve
This 3/4″ brass solenoid valve by U.S. Solid operates on 110 V AC with a normally closed configuration. The brass construction combined with a Viton seal provides robust durability, high chemical resistance, and reliable sealing at elevated temperatures. The 3/4 inch NPT threaded connection supports a range of standard plumbing and piping setups, making it suitable for water, air, and diesel line control. This valve is a strong choice for systems that require tight shutoff with good flow capacity in a broader valve lineup.
When evaluating this option, consider the system pressure range (0.1–10 bar in typical specs) and temperature limits (-10 to 120°C). Ensure compatibility with the fluids being controlled and confirm that the electrical supply aligns with 110 V AC standards in your facility.
Buying Guide: Key Purchase Considerations And Comparisons
Coil Voltage And Electrical Compatibility
All listed options operate at 120 V AC or a related 110 V range. Confirm your available power supply and the control circuitry (mechanical switch, relay, or PLC output) to prevent voltage mismatches. Check coil current requirements and heat generation to avoid overheating in continuous-duty applications.
Stroke, Travel, And Actuation Force
Stroke range determines how far the plunger moves. Longer strokes give greater actuation range but may require more space and could affect response time. Match the stroke to the valve or mechanism being actuated and ensure sufficient force at the end of travel for reliable closure or engagement.
Port Size And Connection Type
Valves often use standard port sizes such as 1/4″ NPT or 1/2″ NPT. Selecting a solenoid with an appropriate port size ensures compatibility with existing piping and reduces the need for adapters. For air and water lines, verify seals and material compatibility with the media (e.g., Viton seals for chemical resistance).
Material And Durability
Brass bodies and laminated cores typically offer robust performance and longevity in many environments. Consider environmental exposure, including temperature ranges, humidity, and potential contaminants. For outdoor or dusty settings, look for housings with protective features or sealing ratings.
Duty Cycle And Continuous Operation
Continuous-duty solenoids are designed for nonstop cycling without frequent rest. If your application involves long-running cycles, verify the manufacturer’s duty cycle rating and thermal management plan. Some environments may require heat sinks or intermittent operation to extend life.
Maintenance, Availability, And Replacements
Assess ease of maintenance and the availability of replacement parts such as coils, seals, or plunger assemblies. A widely used model with readily available parts can reduce downtime and maintenance costs over the system’s lifetime.
Integration And Control Strategy
Consider how the solenoid will be controlled within your system, including whether you’ll need a separate power supply, relays, or a PLC. For precise valve timing, ensure compatibility with your control logic and potential feedback sensors for end-of-stroke confirmation.
In summary, a 120 V solenoid actuator is a versatile component for automated systems. When choosing, balance stroke and force requirements with compatibility, material durability, and the intended duty cycle. The options covered here provide a spectrum of travel distances, port configurations, and durability features to fit a wide range of American installations.
