Best 100 Amp Non-Fused Disconnects for Outdoor and Indoor Electrical Systems
When selecting a 100 Amp non-fused disconnect, the goal is reliable power control for safety, easy installation, and weather resistance. This guide highlights five top products suited for residential, commercial, or outdoor use, with clear guidance on who each model is best for and why. Each option emphasizes robust construction, simple operation, and practical limitations to help you choose confidently.
| Product | Best For |
|---|---|
| Siemens HNF363 | Industrial or heavy-duty residential applications needing fast-make/fast-break action |
| Eaton 100 Amp Non-Fused Safety Switch | General-duty, easy installation, practical for varied loads |
| Siemens HNF363R | Outdoor-rated, 3-pole installations requiring 3R enclosure protection |
| Siemens GNF323R | Outdoor-rated general-duty safety switch for exterior circuits |
| Siemens GNF323 | Indoor general-duty applications needing compact 3-pole control |
Siemens HNF363 100-Amp 3 Pole Non-Fused HD Switch
Best for: Industrial or heavy-duty residential applications needing quick-make/quick-break operation. This 100 Amp, 3 Pole, 600V switch uses a non-fused design with a quick-make, quick-break mechanism to ensure positive operation and fast isolation. Arc chutes dissipate heat, prolonging life in frequent switching scenarios. Suitable for environments where rapid disconnection under load is important. Limitations include the need for proper enclosure and external wiring space.
Eaton 100 Amp Non-Fused General-Duty Safety Switch
Best for: General-duty outdoor or indoor installations needing straightforward wiring and easy maintenance. Features include deionizing arc chutes to confine arcs, ample wire bending space for simple installation, and additional locking options. It offers visibility of the ON/OFF state and improved tamper resistance. A caution: ensure compatible enclosure and correct wire sizing for your load.
Sigrupery 100-Amp 2-Pole Non-Fused AC Disconnect Box
Best for: Outdoor installations requiring NEMA-3R enclosure with corrosion resistance and ground kit. This 100A, 2-Pole disconnect offers quick switching, robust galvanized steel construction, and weatherproof protection. It is a practical choice for outdoor power control where space constraints favor a 2-pole design. Limitation: not a 3-pole unit, so assess whether a 2-pole arrangement meets your circuit needs.
Siemens HNF363R 100-Amp 3 Pole Non-Fused HD Switch
Best for: Outdoor-rated, 3P installations needing 3R enclosure protection and robust arcing control. This version emphasizes outdoor suitability with a non-fused design and a quick-make, quick-break mechanism for reliable operation. Caution: ensure proper weatherproofing and enclosure suitability for your location.
Siemens GNF323R 100 Amp 3 Pole Outdoor Rated
Best for: Outdoor general-duty safety switching with 3P, 600V capability. This unit is ideal for exterior electrical distribution where environmental exposure is a factor. Because it is outdoor-rated, consider placement and sealing against moisture. Limitation: ensure compatibility with your disconnect enclosure and wiring configuration.

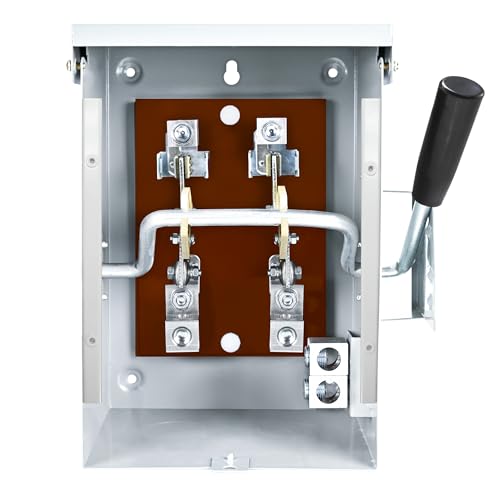

ZHWYBXS 100 Amp 2-Pole Non-Fused Outdoor Safety Switch
Best for: Outdoor installation requiring a robust, weather-resistant 2-pole disconnect with ground kit. It provides strong weather protection and visible ON/OFF indication for reliable outdoor power control. Choose this if your application is 2-pole and exterior-facing, but verify load requirements to ensure 2-pole sufficiency.
Buying Guide: Key Considerations For 100 Amp Non-Fused Disconnects
- Voltage and current rating: Ensure the unit is rated for your system voltage (commonly 120/240V or 600V) and a continuous 100A capacity.
- Pole configuration: Decide between 2-pole or 3-pole based on your circuit layout and whether you need neutral or ground handling in the disconnect.
- Indoor vs outdoor use: Outdoor units require NEMA-3R or equivalent enclosure protection and corrosion resistance.
- Enclosure compatibility: Verify enclosure size, knockout patterns, and wire bending space to fit your installation.
- Arc suppression and life: Arc chutes and quick-make/quick-break actions improve reliability under load switching.
- Tamper resistance and locking: Some models offer additional locking features and tamper resistance for safety compliance.
- Maintenance and accessibility: Consider ease of wiring, panel access, and how often the disconnect will be operated.
Frequently Asked Questions
- What does a non-fused disconnect do?
It provides quick electrical isolation without built-in fuses, allowing manual shutoff of a circuit for service or emergency scenarios.
- When is a 3-pole disconnect required?
Use a 3-pole unit when you need to disconnect all live conductors in a 3-phase or multi-wire single-phase setup, including the neutral where applicable.
- What is NEMA-3R enclosure protection?
It denotes outdoor weather protection against rain, sleet, and outdoor elements, enabling safe outdoor installations.
- Are there safety considerations for outdoor disconnects?
Yes. Ensure proper grounding, weatherproof enclosure, secure mounting, and compliance with local electrical codes.
- How do I choose between indoor and outdoor models?
Indoor units are for dry interior spaces; outdoor units are designed to withstand moisture, temperature changes, and exposure to the elements.
- What maintenance is required for these switches?
Regular inspection for corrosion, loose connections, and operational tests of the ON/OFF mechanism are recommended.
